RMSv1 Graphing Example

Paessler makes an excellent graphing utility (PRTG) that works very well to generate nice looking graphs based on voltages polled from your RMSv1 board.

Below are some screen shots of how to create voltmeter graphs using PRTG

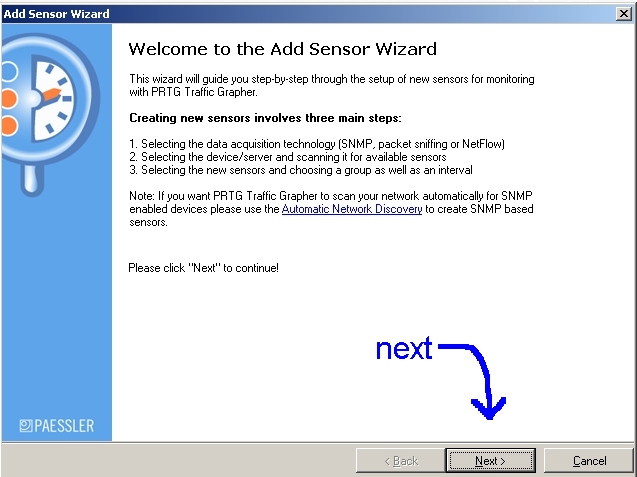

Step 1:

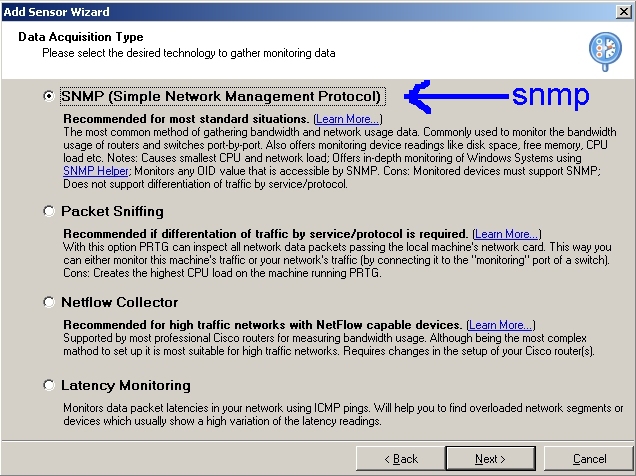

Step 2:

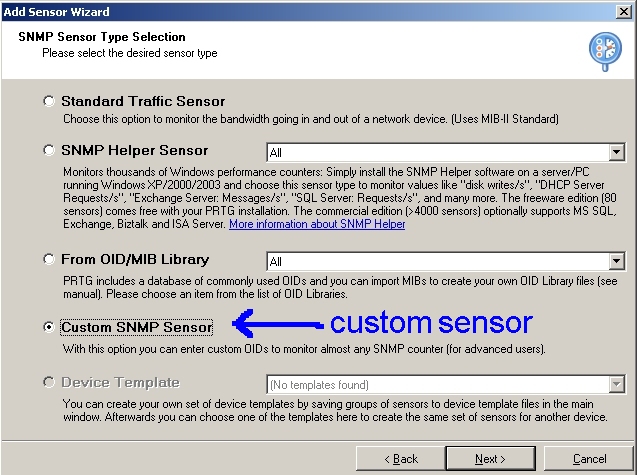

Step 3:

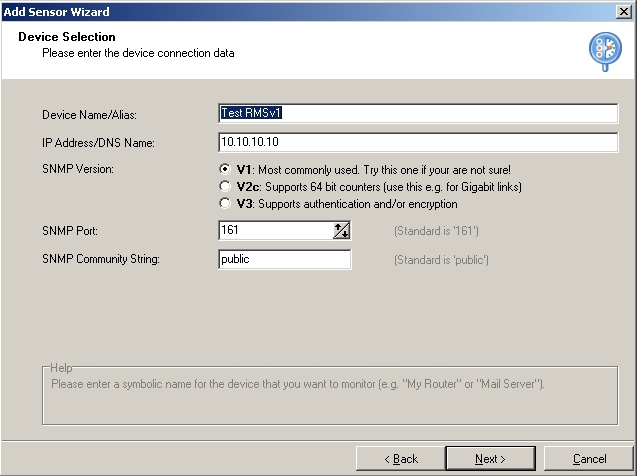

Step 4:

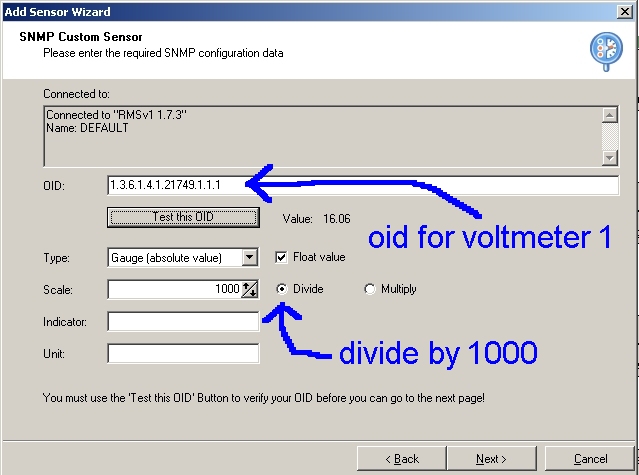

Step 5:

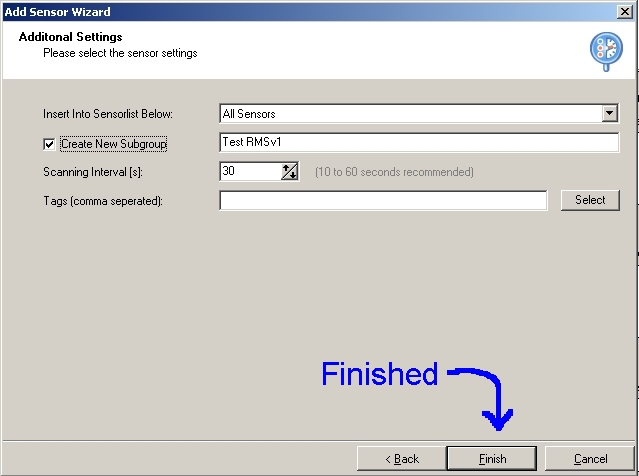

Step 6:

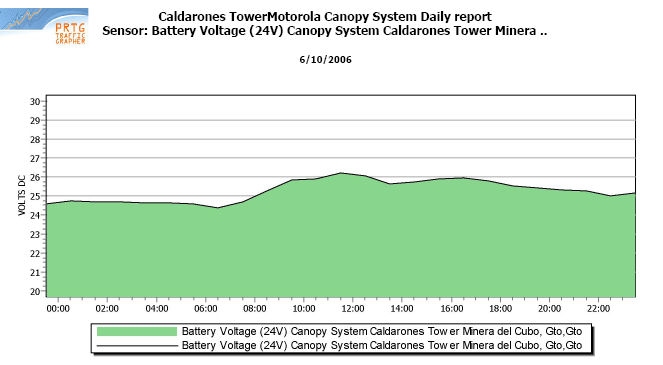

After some time, graphs should start to be drawn.
