RMS in Action at:

J & R Electronics, North Idaho

http://www.jrcda.com/



Description: J & R offers 2-Way Radio, Broadband Wireless Internet, and Globalstar Satellite Phones. This is Sundance Mountain, a rural solar site.

RMS-200 monitors and reports on the following elements:

  • Battery room temperature
  • 12 VDC distribution voltage
  • 24 VDC distribution voltage
  • Solar charge current on three separate banks of panels.
  • Wind charge current
  • TEG charge current
  • Solar panel tampering or removal
  • Total Electrical site load

RMS-200 Controls the following elements:

  • Control of run/stop on 3 thermal electric generators AND 2 based on voltage AND 1 based on temperature
  • Disabling of wind generator if a wind storm is imminent

RMS-200 sends out email notifications based upon user set conditions on the above elements!


The Site

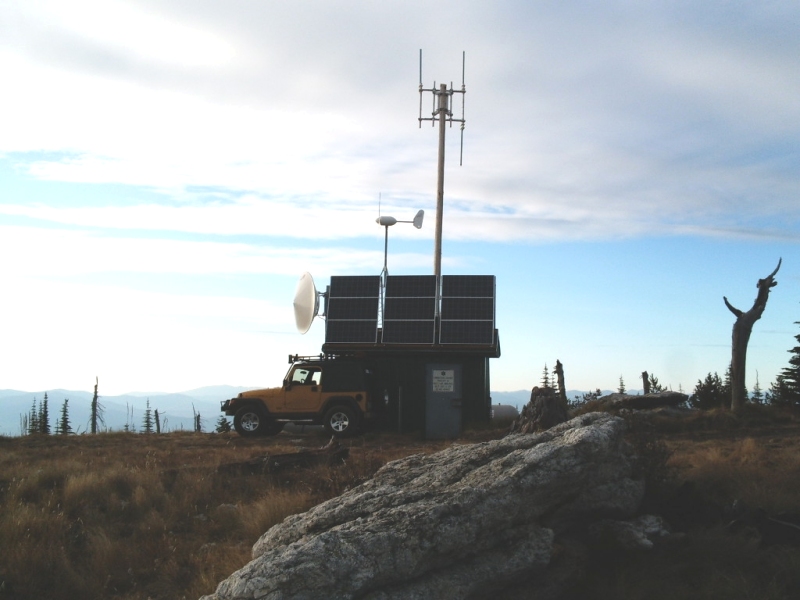

Sundance Mountain site, Idaho.


Description: Rathdrum Mountain. A High Density Solar Site.


RMS-200 monitors and reports on the following elements:

  • Battery room temperature
  • 12 VDC distribution voltage
  • 24 VDC distribution voltage
  • 48 VDC distribution voltage.
  • Solar charge current on two separate banks of panels
  • Wind charge current
  • AC charge current
  • AC power - With a wall wart
  • Total Electrical site load

RMS-200 Controls the following elements:

  • Control of run/stop on 1 thermal electric generators
  • Control of run/stop on 1 traditional propane generator
  • Disabling of wind generator if a wind storm is imminent

Site #2

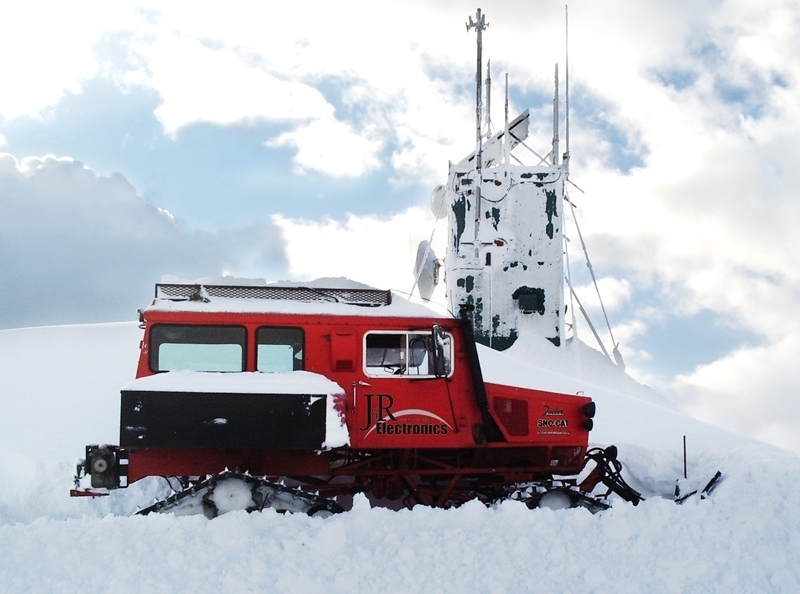

Rathdrum Mountain site, Idaho.


RMS-200 rack mounted.

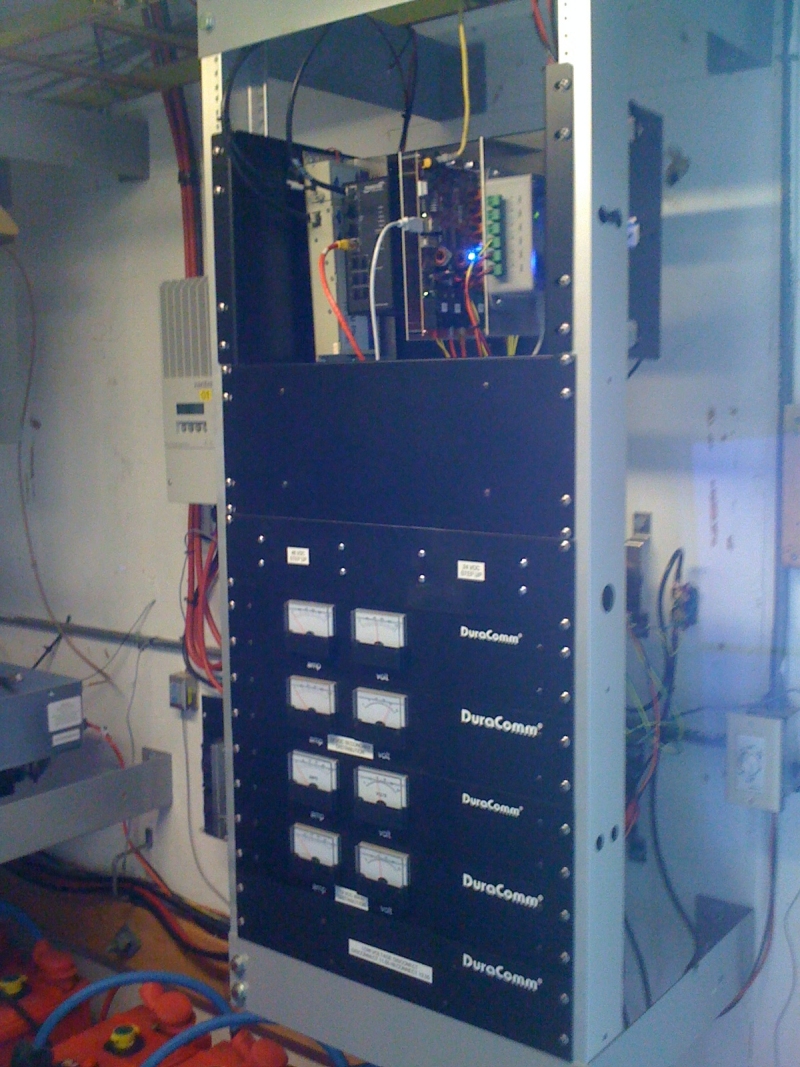

RMS-200 in action at Rathdrum Mountain site, Idaho.


RMS-200 with a USB isolated voltmeter add-on board.

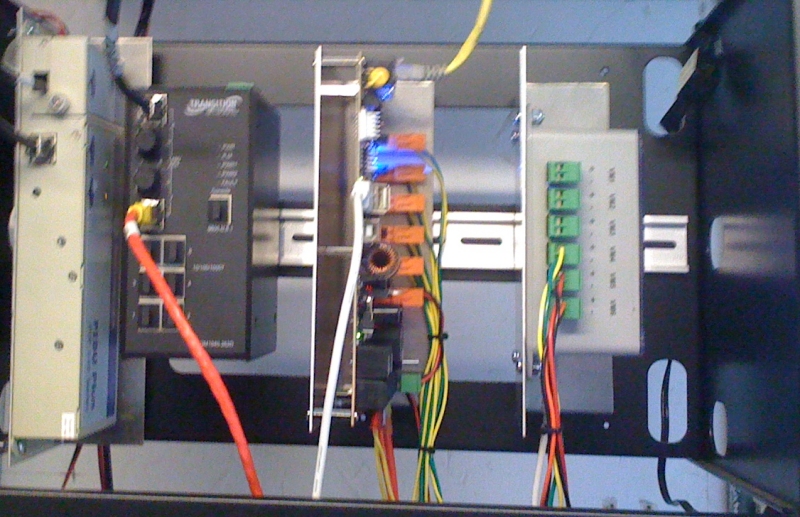

RMS-200 in action atRathdrum Mountain site, Idaho.
