RMS in Action at:

OptimERA Inc Alaska U.S.A

http://optimera.us/



Description: Remote site on Sedanka Island.

The RMS-200 remote monitoring board is controlling and monitoring a propane fueled solid state thermal electric generator (TEG) which powers a remote microwave site on Sedanka Island. OptimERA provides telephone and internet service to Icicle Seafood's Northern Victor, which is a fish processing facility in the Bearing Sea. This system hosts phone and data for the 200+ crew members, including providing critical support to a vessel that would otherwise have none.



Sedanka Island

Sedanka Island on the map. NASA photo of Sedanka-Island. The Bearing Sea map.

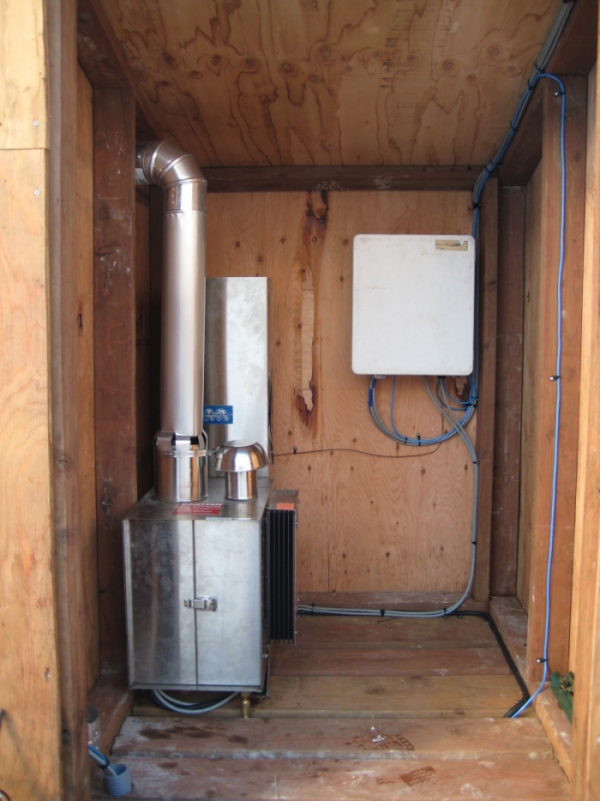

The Thermal Electric Generator and equipment locker.

The Thermal Electric Generator and equipment locker on Sedanka Island.

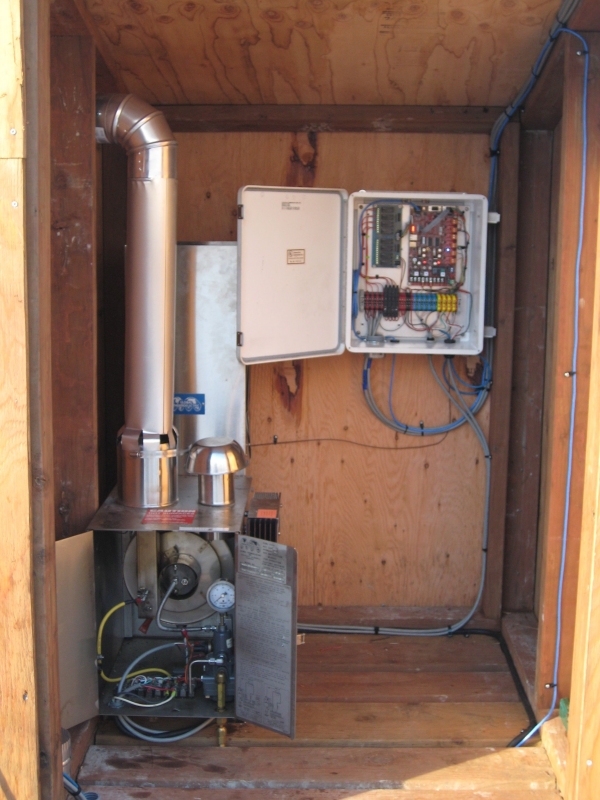

Generator and equipment doors open.

Generator and equipment doors open.

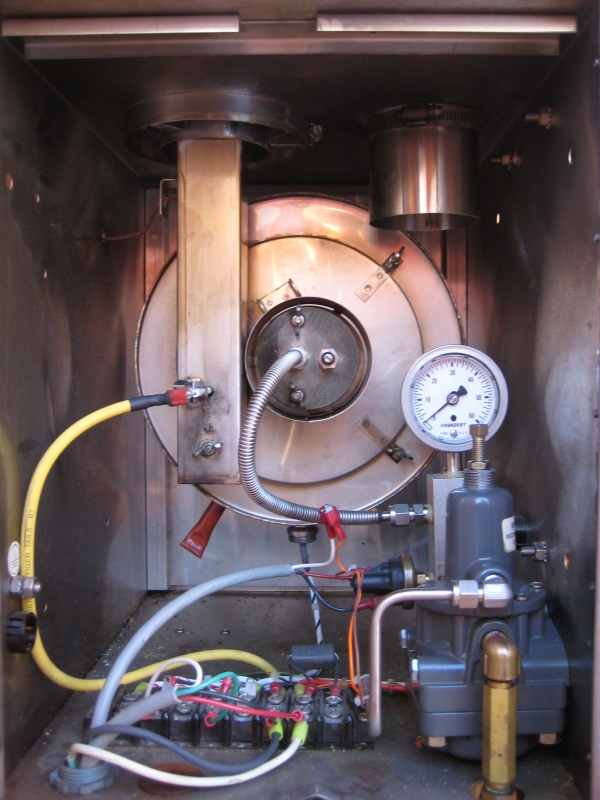

The Thermal Electric Generator, a closer look.

The Thermal Electric Generator, a closer look.

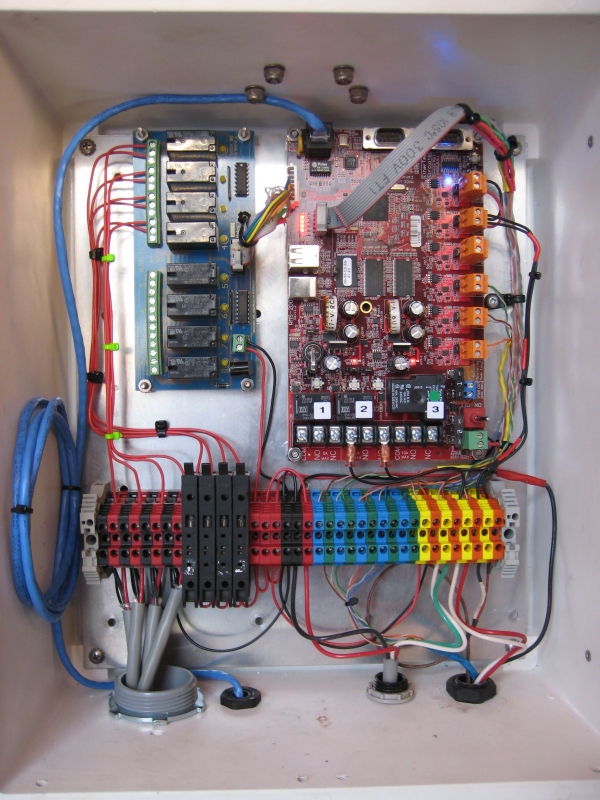

The RMS-200 remote site monitoring board installed.

The RMS-200 runs a cron schedule which turns the generator on and off, on a 12 hour cycle. This powers equipment and charges a battery backup bank which is used when the generator is not in use. The RMS-200 monitors the generator when it is starting up, when it is running, the power that it is putting out, the power that is available to the system, the state of the solenoids, and the state of the propane bank. When the generator starts up, an email is sent stating that the TEG is starting. If the generator fails to start, a corresponding email is also generated. When the TEG is at running temperature confirmation of the TEG state is sent by email.

The RMS-200 remote site monitoring board installed.



Four banks of propane run through a solenoid panel with pressure switches before the solenoids. These switches tell the RMS-200 board what state the banks are in, either propane or no propane available. When a bank is emtpy an alarm is triggered on the RMS-200 which runs a script that switches the propane bank in use and sends an email alert stating which bank is empty and the state of the solenoid.

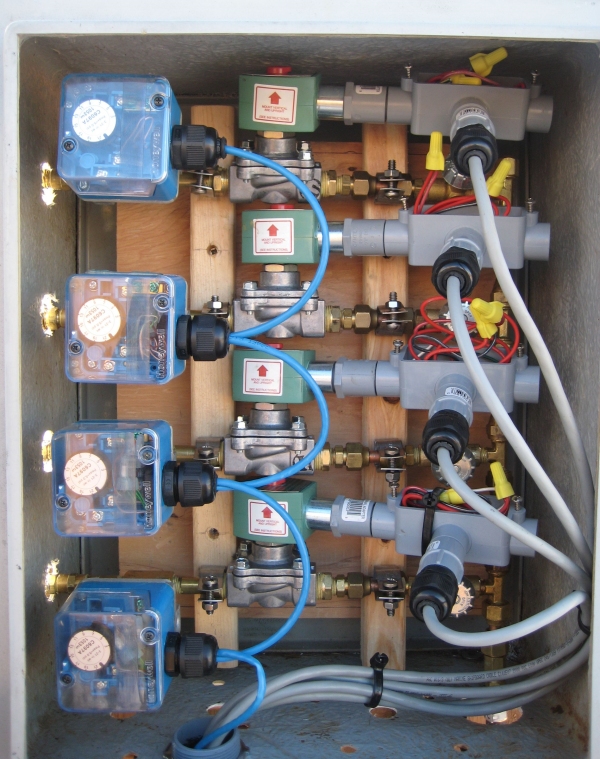

Fuel solenoid panel.

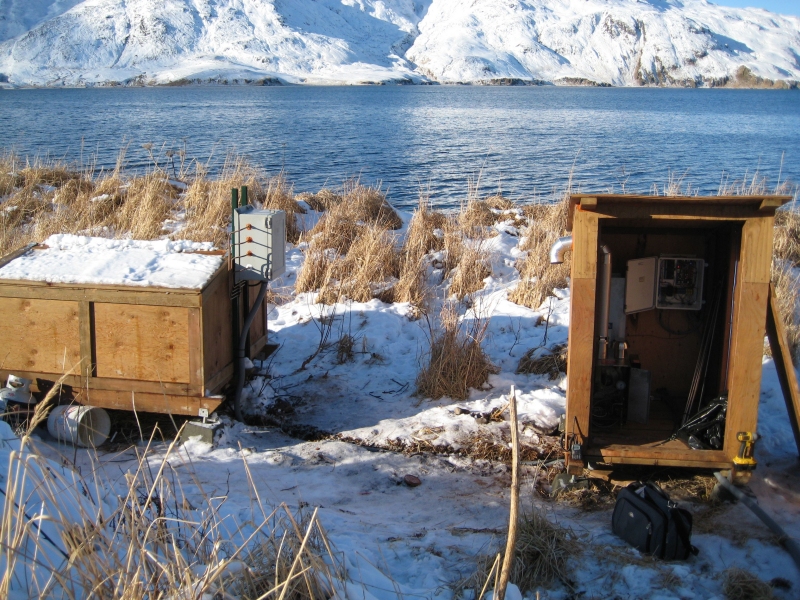

The remote equipment enclosures.

The remote equipment enclosures.
